AOS 4 V5

Ditch the GoPro for unbelievable speed, power and responsiveness, powered by AOS X-Cell.

Key Features

Metal Camera Cage

The AOS 4 V5 is equipped with an ultra-durable 7075 Aluminium Camera Cage that accommodates 14 - 20mm cameras, ensuring perfect compatibility with a wide range of FPV camera systems. The frame allows for hard or soft mounting of all popular camera systems including Analog, WS Avatar, HDZero and DJI. O3 ND Filters are supported. STL files for TPU camera mounts are linked below.

Metal Camera Cage

Easy to build

The AOS 4 V5 is designed to be the easiest and most user-friendly FPV frame to build. It's perfect for beginners and experts alike with plenty of space, easy access to every screw and steel press-nuts to reinforce the arm and stack mountings.

Easy to build

Vibration Isolation

Say goodbye to unwanted vibrations that can hinder your drone's performance. The AOS 4 V5 boasts the new patent pending AOS X-Cell anti-vibration mount for the flight control stack, reducing vibrations by up to 50%. This groundbreaking feature enables you to run lower filtering, dial in higher PID gains, and achieve unparalleled flight performance.

Vibration Isolation

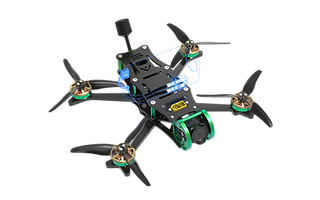

Flexible Battery Mounting

Experiment with different battery configurations by choosing between lengthwise or toilet tank battery mounting options. This flexibility allows you to optimize your drone's balance and performance based on your flying style and preferences.

Flexible Battery Mounting

Technical Specs

  • Supports up to 4” Props

  • AOS X-Cell Anti-Vibration Technology

  • Up to three 25.5x25.5 M2, or 20x20 mm stacks (center 20 x 20 mm stack is M3)

  • 155° FOV no props in view

  • Fully DJI O3 compatible (soft mount + ND filters, no props in view)

  • Supports 19-20mm cameras (hard or soft mounted)

  • Reinforced 7075 Aluminium Camera Cage

  • Supports Lengthwise or Toilet Tank battery mounting

  • 12 - 16mm motor mounting (supports all standard 4” motors)

  • 75g including hardware and camera cage

  • 27x18mm M2 GoPro Mounting Pattern

  • 32mm Rear Standoff Spacing (compatible with all AOS M3 antenna mounts)
