AOS 5 EVO

Exceptional flight performance. Unparalleled versatility. Improved durability. Simple to build. Easy to maintain.
This is data-driven FPV.

Key Features

Go Pro Mount

The AOS 5 has 32x32 mm M3 mounting holes for 3D printed mounts for your HD camera. Press-nuts in the top plate make installing the mount a breeze.

Go Pro Mount

Camera Protection

The AOS 5 V2 uses 2.0 mm Carbon Plates to hold and protect the camera. These are stiffer, lighter and cheaper to replace than aluminum or titanium.

The camera plates include 2 standoffs to maximise durability and a cutout pattern that supports DJI O3 and all typical19-20mm FPV cameras.

Camera Protection

Top and Bottom Plates

The 2.5mm thick main plate supports up to three full-sized 30.5mm stacks. 20 and 25.5mm stacks are supported and the M2 20mm holes are designed to be easily drilled out to M3 if required.


The top plate has pressnuts installed for effortless GoPro mounting using a standard 32x32mm footprint.


The cut outs in the top and bottom plate of the AOS 5 V2 are optimized to preserve as much of the bending and torsional stiffness of the plate as possible whilst minimizing weight.

Top and Bottom Plates

Arms

The AOS 5 V2 uses a topology optimized truss design for the arms. This truss design provides enormous torsional stiffness, resolving a key source of vibration in traditional frames. It also allows two particularly harmful resonant modes to be individually modified to separate them in frequency.

Truss structures are inherently very strong as they convert bending loads into compression and tension in the individual members. Carbon is much stronger in pure tension and compression than in bending. The 3 screw motor mounting reduces weight and removes the motor hole that can be a stress riser for compressive failure in hard crashes.

Y-shaped motor protectors minimize the risk of damage to those expensive components. Should you ever need to replace an arm, there are only two screws to undo and neither are shared with your electronics.

Arms

Technical Specs

  • ​Approx 115g with all hardware

  • Designed for up to 5.1 inch props, no props in view.

  • 220mm wheelbase

  • 6 mm Arms

  • Up to three 30.5, 25.5, or 20 mm stacks

  • 32x32mm GoPro mounting holes in top plate with installed press-nuts

  • XT60 pass through top plate

  • Two captive battery strap slots

  • Fits the DJI Air Unit, Caddx Vista, or HDZero 1W VTX perfectly

  • Fits the DJI FPV camera or 19x19 mm camera

  • Recommended motor size 2306, 2207, 2208

  • 16x16 up to 19x19mm motor mounting

  • Standoffs, carbon and hardware included

Where to Buy

Build Resources

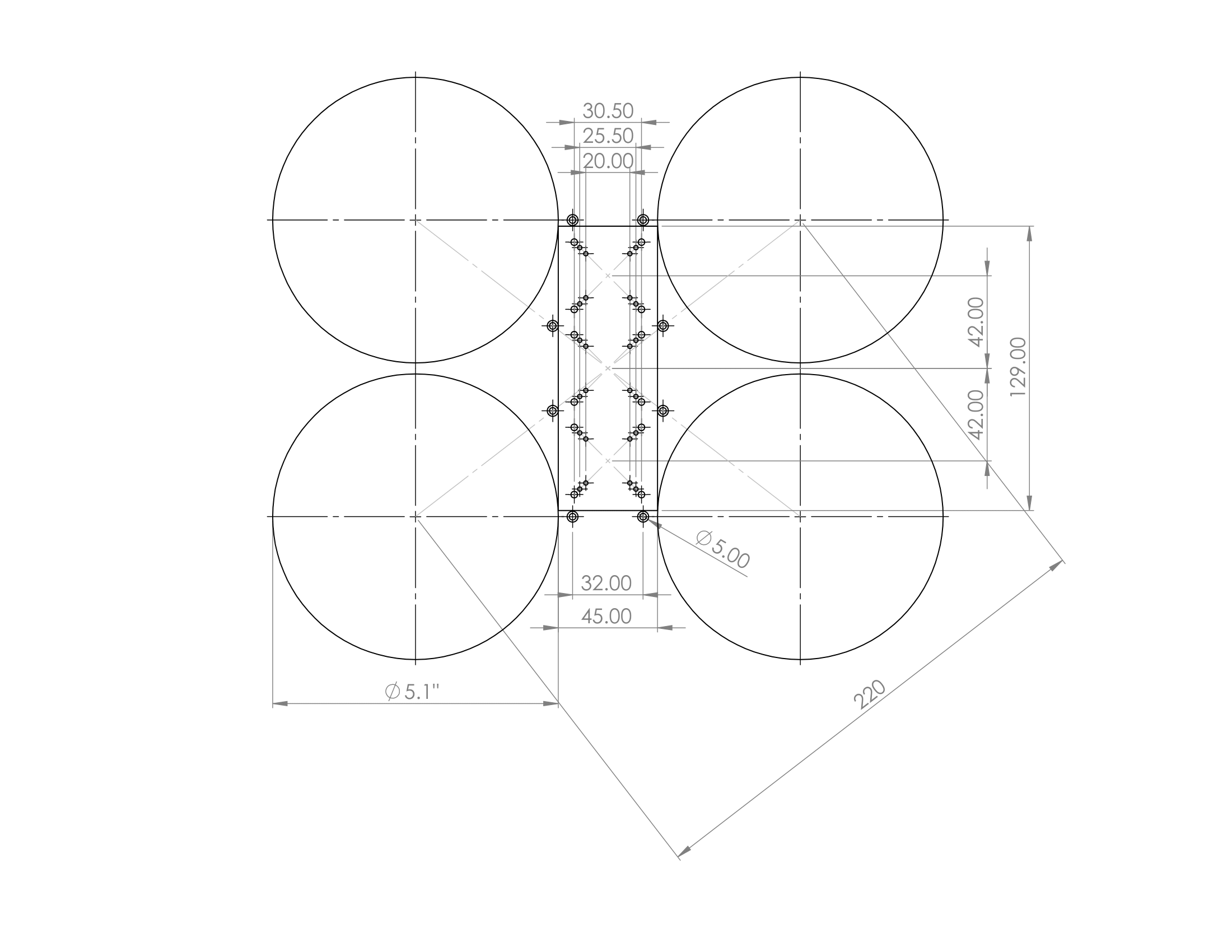

AOS 5 EVO Outline Diagram

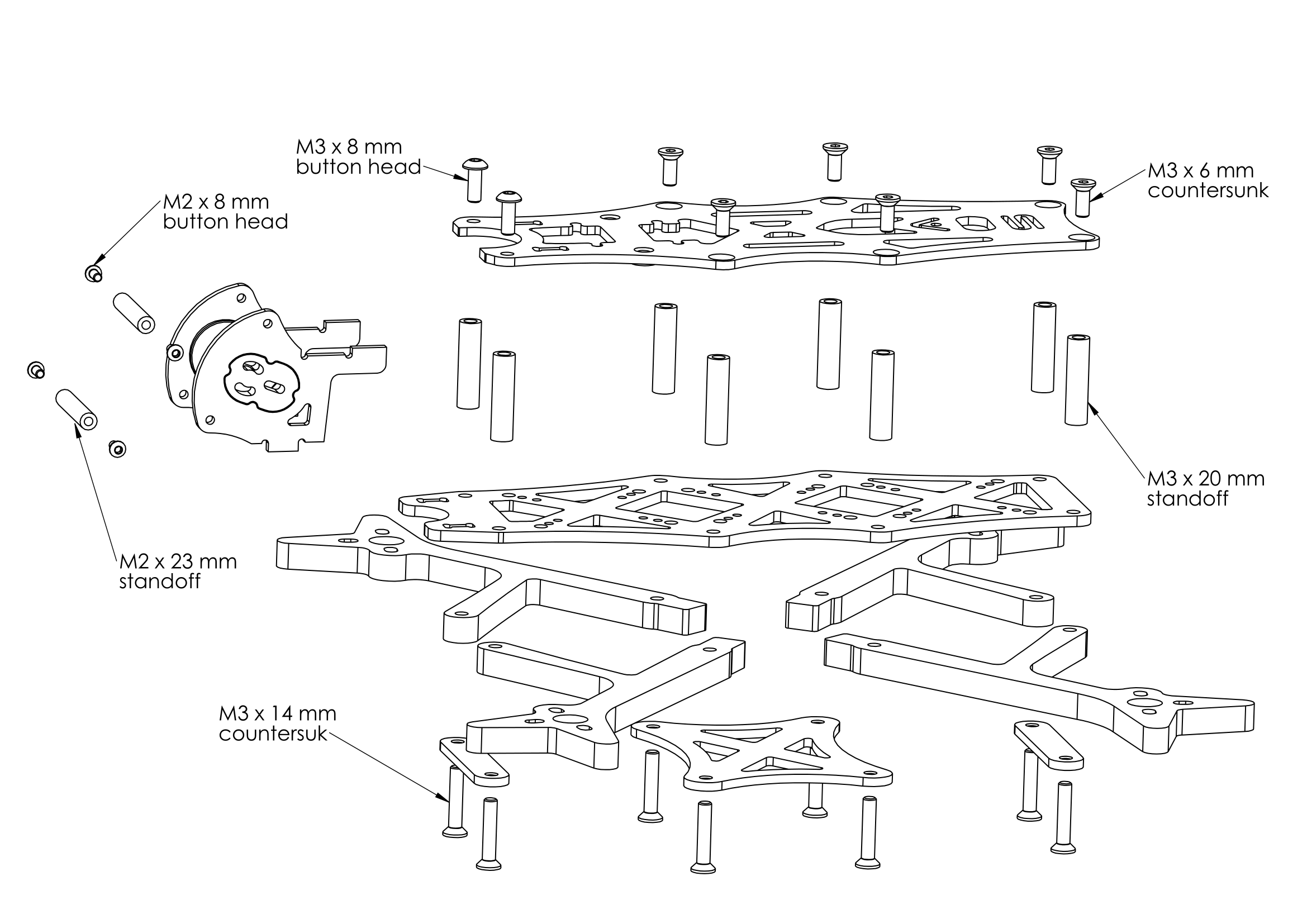

AOS 5 EVO Exploded Diagram
