AOS 5R V5

Redefining State-of-the-Art in Drone Racing.
AOS X-Cell for Ultimate Flight Performance .
Easy to build and a joy to work on.

Key Features

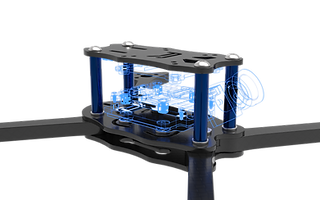

Vibration Isolation

Say goodbye to unwanted vibrations that can hinder performance. The AOS 5R V5 boasts the new patent pending AOS X-Cell anti-vibration mount for the flight control stack, reducing vibrations reaching your gyro. This groundbreaking feature enables you to run less filtering, higher PID gains, and reduces micro oscillations that reduce top speed and waste battery power. The arm and stack mounts on the AOS 5R V5 are reinforced with steel press-nuts for easy assembly, rock solid mounting, and enhanced durability.

Vibration Isolation

Unrivaled Stack and VTX Compatibility

50 mm stack clearance front to rear fits the largest and most powerful 20x20 mm ESCs available in the market. 25x25 and 20x20 mm M2 mounting on the top plate fits race VTXs for Analog, HDZero, and WS Avatar.

Unrivaled Stack and VTX Compatibility

Easy to build

The AOS 5R V5 is designed to be the easiest and most user-friendly FPV race frame to build. It's perfect for beginners and pros alike with plenty of space and no fiddly shims or interlocking carbon pieces! 20mm standoff spacing fits existing 3D printed shark fins, 14mm camera mounts and VTX antenna mounts. Upgrading your existing race build to the AOS 5R is a breeze. Simplicity is also the key to lightness, this frame comes in at ~60g with 6mm arms or just ~50g with 5mm arms.

Easy to build

Technical Specs

  • Supports up to 5.3" Props

  • AOS X-Cell Anti-Vibration Technology

  • 20x20 mm M3 flight stack

  • 25.5x25.5 mm OR 20x20 mm M2 top plate mounting

  • 20mm standoff spacing fits existing 3D prints for 14mm cameras, Shark Fin, and VTX antenna

  • 55mm standoff spacing front to rear fits even the largest 20x20 M3 ESCs

  • 16mm motor mounting (supports all standard 5" motors)

  • ~60g (6mm arms) ~50g (5mm arms)
