AOS UL10 V5

Based on the incredibly popular AOS UL7, the AOS UL10 V5 has been refined to become your go-to frame for everyday long-range flying on 10” props.

Key Features

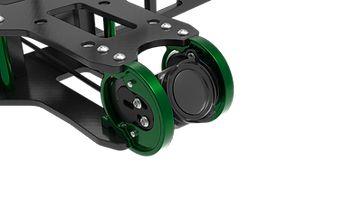

Durable and Versatile 7075 Aluminum Camera Cage

Built to last, the 7075 aluminum camera cage accommodates all 19-20mm cameras, ensuring broad compatibility with various camera systems. It includes an integrated soft mount specifically designed for the DJI O3 camera, complete with full ND filter support. For users with different FPV systems, the frame supports hard mounting for all popular camera options, including Analog, WS Avatar, HDZero, and DJI. Additionally, 14mm cameras are supported with a 3D printed mount (STL file available below).

Durable and Versatile 7075 Aluminum Camera Cage

Ultra-Light, Ultra-Stiff Structure

The AOS UL10 V5 takes the groundbreaking arm design of the original model and refines it for greater durability and stiffness. This ensures smoother flights free from jello effects and tuning difficulties, delivering a 10” frame with stiffness that rivals most 5” designs.

Ultra-Light, Ultra-Stiff Structure

Unrivaled Stack and VTX Compatibility

The AOS UL10 V5 offers three stack positions that support 30.5x30.5mm, 25.5x25.5mm, and 20x20mm mounting, ensuring complete compatibility with a wide range of flight controllers, ESCs, and other electronics. Whether using digital or analog FPV VTXs, the AOS UL10 V5 gives you the flexibility to build and customize your drone to your exact specifications.

Unrivaled Stack and VTX Compatibility

Immersive 155° FPV Experience

Enjoy an expansive 155-degree field of view (FOV) for your FPV camera, free of props in view. This feature is ideal for DJI O3 users and provides an immersive flight experience, allowing you to capture stunning footage without obstruction.

Immersive 155° FPV Experience

Advanced Patent-Pending Anti-Vibration Technology

Achieve optimal flight performance with the new AOS X-Cell anti-vibration mount for the flight control stack. This innovative, patent-pending feature minimizes unwanted vibrations, allowing for reduced filtering, higher PID gains, and a more responsive flight experience.

Advanced Patent-Pending Anti-Vibration Technology

Technical Specs

  • Propeller Support: Up to 10" props

  • Anti-Vibration Technology: AOS X-Cell Anti-Vibration Mount

  • Stack Mounting Options: Three positions, supporting 30.5x30.5mm, 25.5x25.5mm, and 20x20mm

  • Field of View: 155° FOV with no props in view

  • Camera Compatibility: Fully DJI O3 compatible (soft mount + ND filters), supports 19-20mm cameras (hard or soft mounted)

  • Camera Cage: Reinforced 7075 aluminum construction

  • Motor Mounting: Supports ⌀19mm motor mounting (compatible with all standard 10" motors)

  • Recommended motors: 3215 to 3220 (900KV for 6S 750KV for 8S)

  • Frame Weight: TBC grams (including hardware)

  • GoPro Mounting: 210x210mm M3 GoPro mounting pattern

  • Rear Standoff Spacing: 32mm
