Go Pro Mount
The AOS 5.5 has 32x32 mm M3 mounting holes for 3D printed mounts for your HD camera. Press-nuts in the top plate make installing the mount a breeze.
The AOS 5.5 V2 uses 2.0 mm Carbon Plates to hold and protect the camera. These are stiffer, lighter and cheaper to replace than aluminum or titanium.
The camera plates include 2 standoffs to maximise durability and a cutout pattern that supports DJI O3 and all typical19-20mm FPV cameras.
Top and Bottom Plates
The 2.5mm thick main plate supports up to three full-sized 30.5mm stacks. 20 and 25.5mm stacks are supported and the M2 20mm holes are designed to be easily drilled out to M3 if required.
The top plate has pressnuts installed for effortless GoPro mounting using a standard 32x32mm footprint.
The cut outs in the top and bottom plate of the AOS 5.5 V2 are optimized to preserve as much of the bending and torsional stiffness of the plate as possible whilst minimizing weight.
The AOS 5.5 V2 uses a topology optimized truss design for the arms. This truss design provides enormous torsional stiffness, resolving a key source of vibration in traditional frames. It also allows two particularly harmful resonant modes to be individually modified to separate them in frequency.
Truss structures are inherently very strong as they convert bending loads into compression and tension in the individual members. Carbon is much stronger in pure tension and compression than in bending. The 3 screw motor mounting reduces weight and removes the motor hole that can be a stress riser for compressive failure in hard crashes.
Y-shaped motor protectors minimize the risk of damage to those expensive components. Should you ever need to replace an arm, there are only two screws to undo and neither are shared with your electronics.
Approx 125g with all hardware

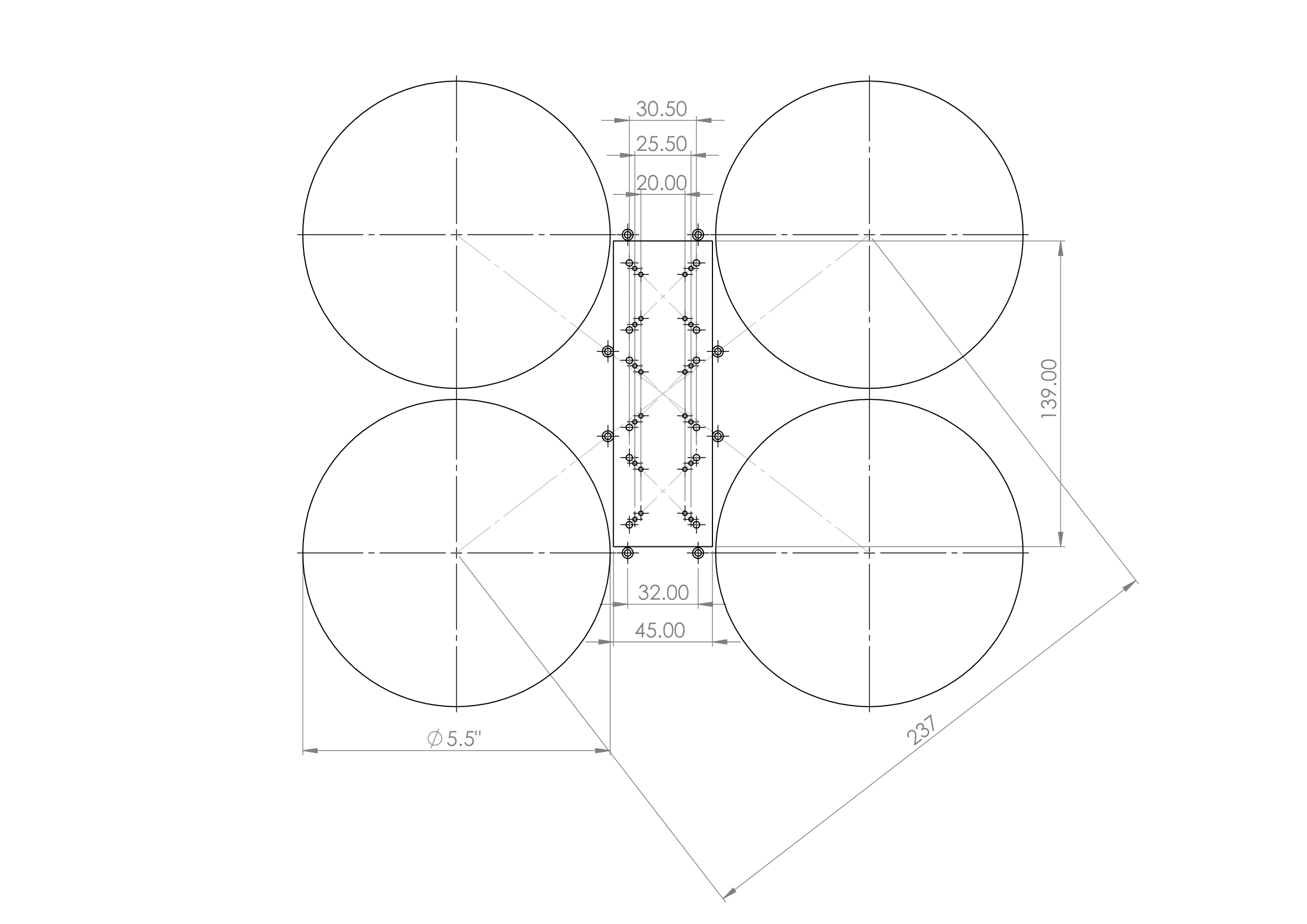

Designed for up to 5.5 inch props, no props in view.
6 mm Arms
Up to three 30.5, 25.5, or 20 mm stacks
32x32mm GoPro mounting holes in top plate with installed press-nuts
XT60 pass through top plate
Two captive battery strap slots
Fits the DJI Air Unit, Caddx Vista, or HDZero 1W VTX perfectly
Fits the DJI FPV camera or 19x19 mm camera
Recommended motor size 2207, 2208, 2506
16x16 up to 19x19mm motor mounting
Standoffs, carbon and hardware included
